imageopenpolygon

(PHP 7 >= 7.2.0, PHP 8)

imageopenpolygonDraws an open polygon

说明

Signature as of PHP 8.0.0 (not supported with named arguments)

imageopenpolygon ( GdImage $image , array $points , int $color ) : bool

Alternative signature (deprecated as of PHP 8.1.0)

imageopenpolygon ( GdImage $image , array $points , int $num_points , int $color ) : bool

imageopenpolygon() draws an open polygon on the given image. Contrary to imagepolygon(), no line is drawn between the last and the first point.

参数


由图象创建函数(例如imagecreatetruecolor())返回的图象资源。

points

An array containing the polygon's vertices, e.g.:

points[0] = x0
points[1] = y0
points[2] = x1
points[3] = y1

num_points

Total number of points (vertices), which must be at least 3.

If this parameter is omitted as per the second signature, points must have an even number of elements, and num_points is assumed to be count($points)/2.
color

颜色标识符使用 imagecolorallocate() 创建。

返回值

成功时返回 true, 或者在失败时返回 false

更新日志

版本 说明
8.1.0 The parameter num_points has been deprecated.
8.0.0 image expects a GdImage instance now; previously, a resource was expected.

范例

Example #1 imageopenpolygon() example

<?php
// Create a blank image
$image imagecreatetruecolor(400300);

// Allocate a color for the polygon
$col_poly imagecolorallocate($image255255255);

// Draw the polygon
imageopenpolygon($image, array(

0,   0,

100200,

300200

),

3,

$col_poly);

// Output the picture to the browser
header('Content-type: image/png');

imagepng($image);
imagedestroy($image);
?>

以上例程的输出类似于:

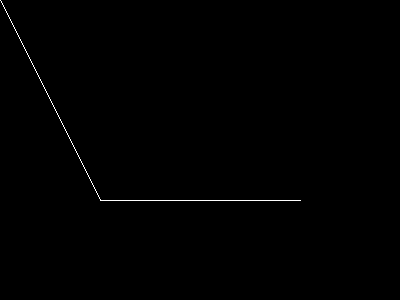

Output of example : imageopenpolygon()

参见

User Contributed Notes

marco at oostende dot nl 16-Dec-2018 11:56
In case you want to use an open polygon but are stuck with a PHP version prior to 7.2, a solution may be to 'backplot' your array to its original start. Say you have an array of pixels (below seperated by commas)

<?php
$arr
= array();
for (
$i = 0; $i < count($pixels); $i++) {

$pixel = explode(',', $pixels[$i]);
    if ((
$pixel[0] > 0) && ($pixel[1] > 0)) {

$arr[] = $pixel[0];

$arr[] = $pixel[1];
    }
}
imagepolygon($im, $arr, (count($arr) / 2), $otcolor);
?>

you can replace this by something like

<?php
$arr
= array();
for (
$i = 0; $i < count($pixels); $i++) {

$pixel = explode(',', $pixels[$i]);

$arr[] = $pixel[0];

$arr[] = $pixel[1];
}
// imageopenpolygon($im, $arr, (count($arr) / 2), $otcolor) is not possible, so...
for ($i = (count($pixels)-1); $i >= 0; $i--) {

$pixel = explode(',', $pixels[$i]);

$arr[] = $pixel[0];

$arr[] = $pixel[1];
}
imagepolygon($im, $arr, (count($arr) / 2), $otcolor);
?>
